商品の詳細:
|
| 流行: | 9.8 mの³ /min | 評価される働く圧力: | 7バー |
|---|---|---|---|
| 保証: | 1年 | 電源: | 電気 |
| 重さ: | 1540のKG | 色: | 黄色、黒 |
| モーターパワー: | 55 kW | モーター速度: | 2960 rpm |
| 製品タイプ: | コンプレッサー | モデル: | XAS166E |
| ハイライト: | Atlas Copco portable compressor,energy saving portable compressor,efficient portable air compressor |
||

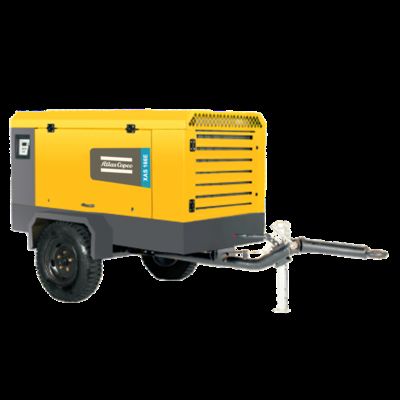

Atlascopco portable compressor
XAS166E
A Partner for Efficiency and Energy Saving
Atlas Copco's electric-drive series of mobile air compressors is designed to the most stringent quality standards, drawing on its extensive experience in the air compressor industry. Equipped with Atlas Copco screw rotors, this series offers high reliability and long service life. Powered by high-performance motors with IP54 protection and F insulation class, they provide added peace of mind. ABB overload protection components ensure stable operation. The compact, lightweight design allows for easy on-site mobility. Simple and convenient operation makes operation easy, significantly reducing operating costs and delivering high returns.
Safety
Dual protection (short circuit and overload) provides excellent stability, minimizing the possibility and severity of accidents and reducing maintenance costs.
Intelligent
The integrated controller offers various display and alarm functions. The attractive and practical operation panel is easy to use without extensive training.
Reliable
The IP65 high-protection electrical control cabinet provides higher reliability and longer life for the electrical system. Safety door handles prevent electric shock accidents. External quick-connect terminals and fixing clamps provide dual protection.
Benefits
The high-power motor meets European Class 1 efficiency standards and national energy efficiency standards, with high starting torque, high efficiency, and low noise, bringing you higher profits.
Technical Parameters
| Compressor Type | XAS166E | |
| FAD | m³/min | 9.8 |
| Rated working pressure | bar | 7 |
| Compression level | 1 | |
| Oil content in gas | mg/m³ | <=5 |
| Exhaust valve dimension | Quantity x Size | G2+G3/4 |
| Motor | ||
| Type | YE2-250M-2 | |
| Power | kw | 55 |
| Service Factor | 1.15 | |
| Motor speed | rpm | 2960 |
| Power supply | V/PH/HZ | 380/3/50 |
| Dimension and weight | ||
| Length, width and height (trailer type) | mm | 3840*1680*1740 |
| Weight( trailer type) | kg | 1540 |
